VELUX Sun Tunnels
VELUX Sun Tunnels
Natural light where you never thought possible
The VELUX Sun Tunnel has been designed to make installation quick and easy. Tube assembly is simple, so little time is spent in the roof cavity.

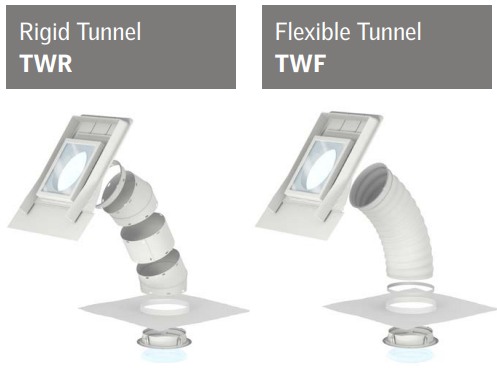

The VELUX flexible (TWF) and rigid (TWR) Sun Tunnels provide installation flexibility. Rigid tunnels are most suited to roof space with minimal obstructions. They have a highly reflective shaft to achieve maximum light output. Flexible tunnels can be used when obstructions in the roof cavity prevent the use of rigid sun Tunnels.

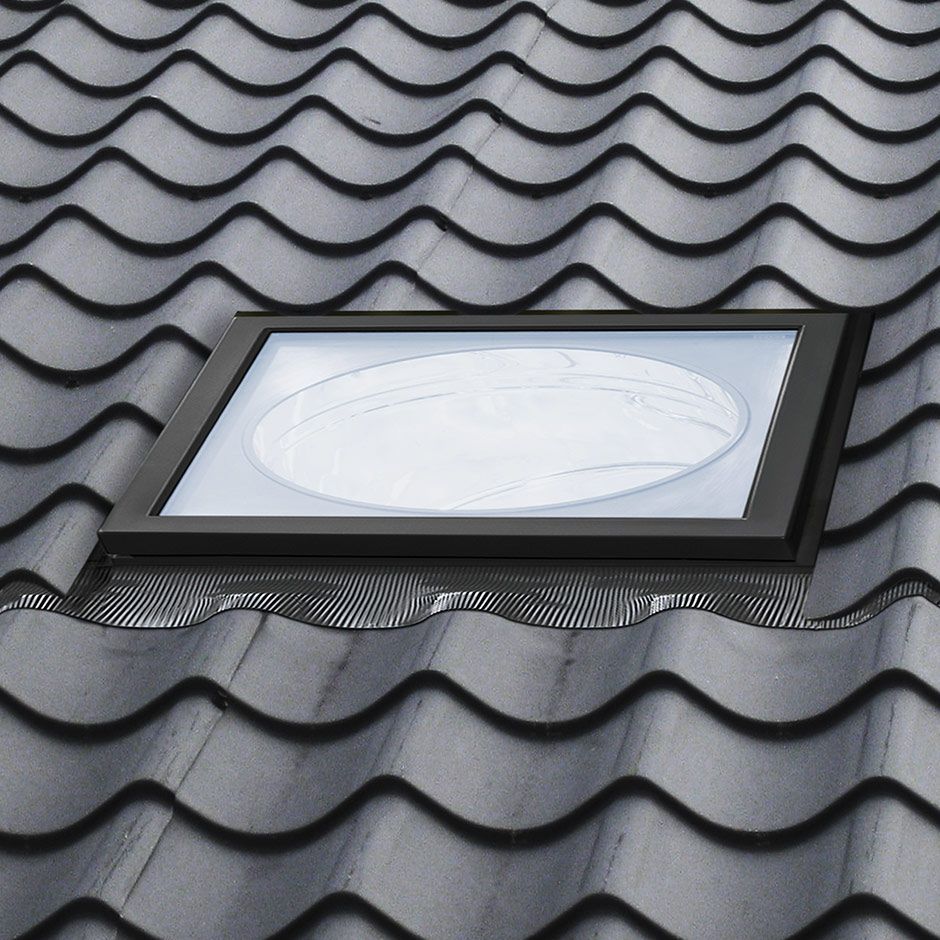

VELUX Sun Tunnels for pitched roofs are designed to provide natural light into corridors, stairwells, powder rooms and cupboards, where installation of a VELUX Skylight is not possible
Product features:
- Bushfire rating of BAL 29 (applicable to TWR installed between 18-60°)
- Choice of highly reflective rigid or flexible tunnel (350mm diameter, lengths vary)
- 4mm toughened external glass

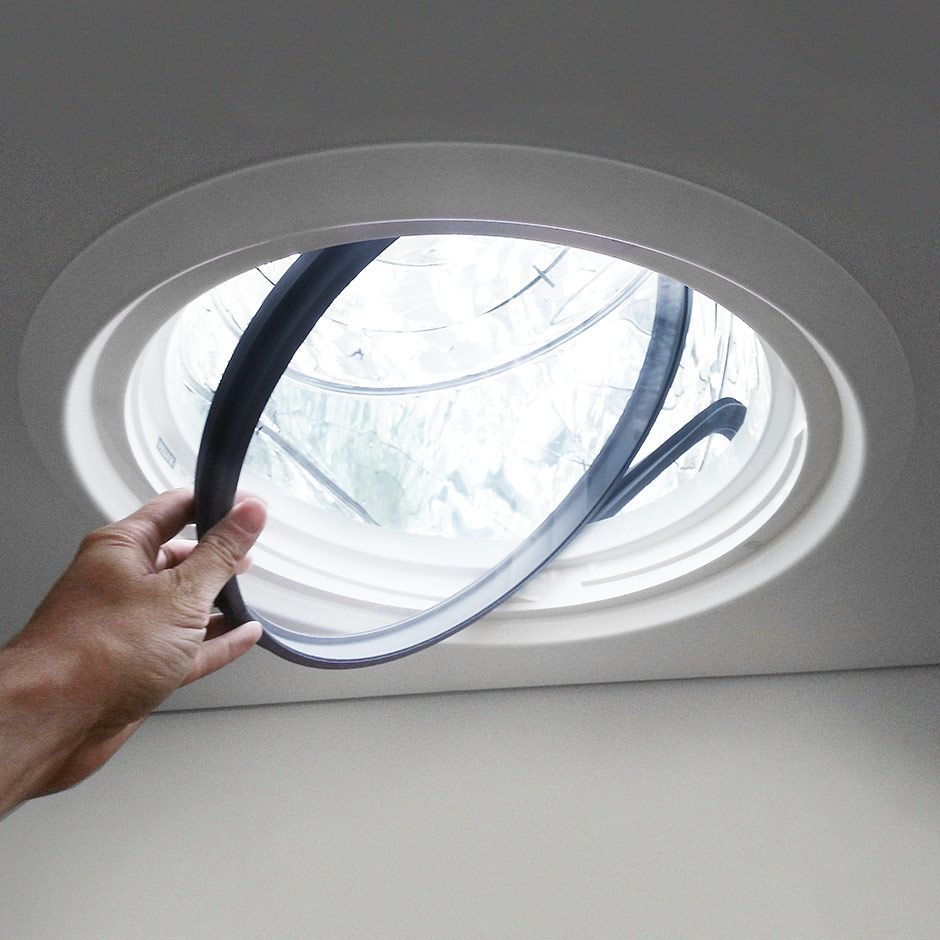

- Dual-layered ceiling diffuser - spreads light over an area of up to 9m²
- Interior diffuser with 'Edge Glow' design
- Outer polyurethane cappings with integrated flashings for tiled/corrugated iron roofs
- 'Stay Clean' coating on glass exterior to reduce cleaning frequency
Specifications
Sun Tunnels Packages comes with:
- 350mm diameter, various lengths of highly rigid / flexible tunnel
- Rigid - 1.65m
- Flexible - 2.2m
- Edge Glow - clear ring on diffuser's edge
- 4mm toughened external glaze
- Skylight frame - 460mm x 460mm
Light Transmission:
- Rigid - 6500 Lumens
- Flexible - 2100 Lumens
Transform your attic or loft
Roof Windows let you transform attic spaces into beautiful living areas filled with Daylight and Fresh Air. The Vent Flap adds the extra convenience of controllable passive ventilation – even when it's raining!
The Pivoting Roof Windows are made of treated pinewood and pre-coated with clear acrylic lacquer. From the outside they are protected by maintenance free aluminium cappings.
Ventilate
In addition to opening, the Roof Windows have the added benefit of a Vent Flap. The Vent Flap allows you to have passive ventilation in your home all day long and can be left open while the roof window is closed.
Easy to use
Roof Windows are purpose built for manual, in-reach operation, perfectly suited for a converted attic or loft. Opening is a breeze - a simple pull of the top control bar opens the window completely in a matter of seconds.
