Corners
Corners to suit Half Round Gutters

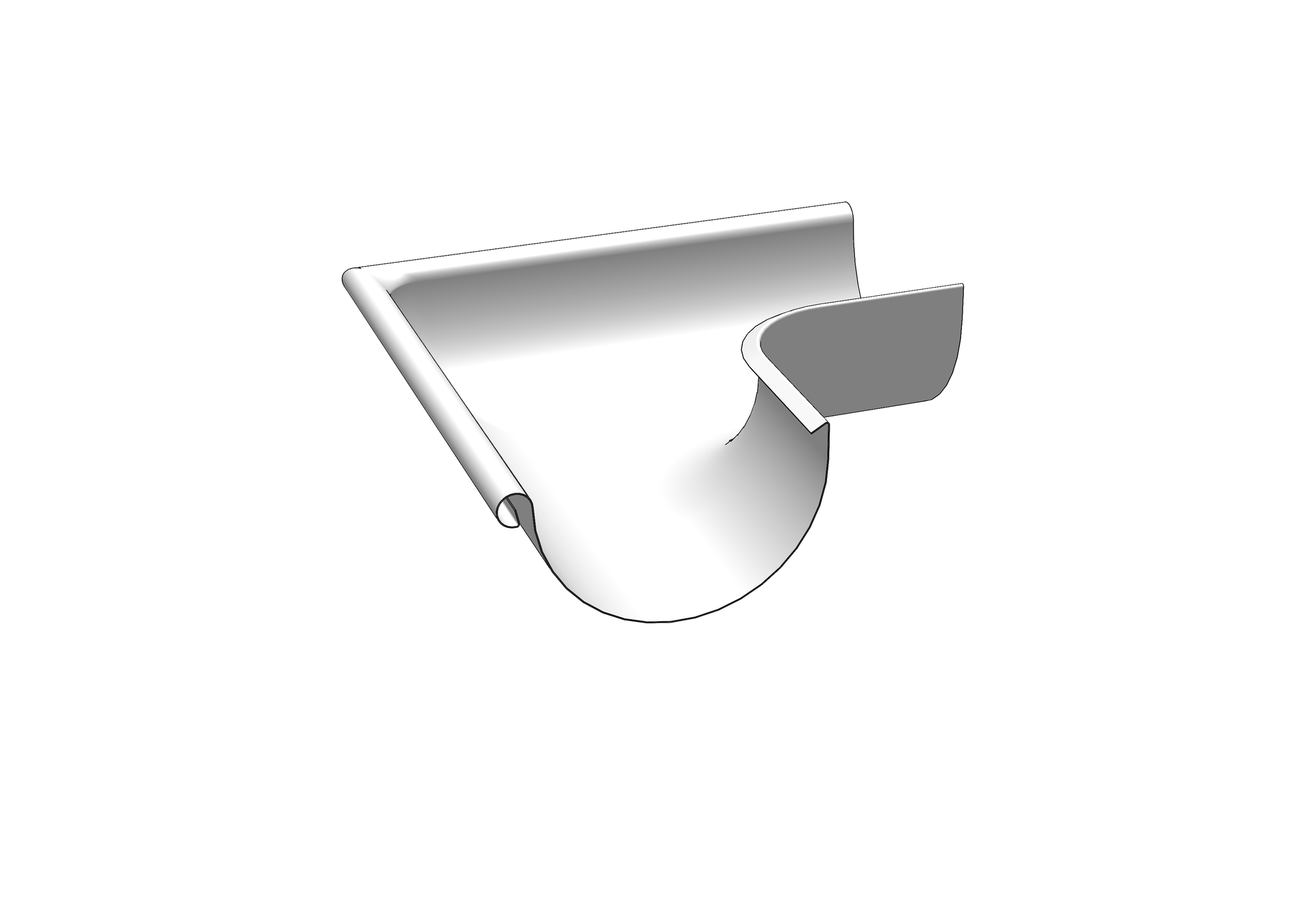

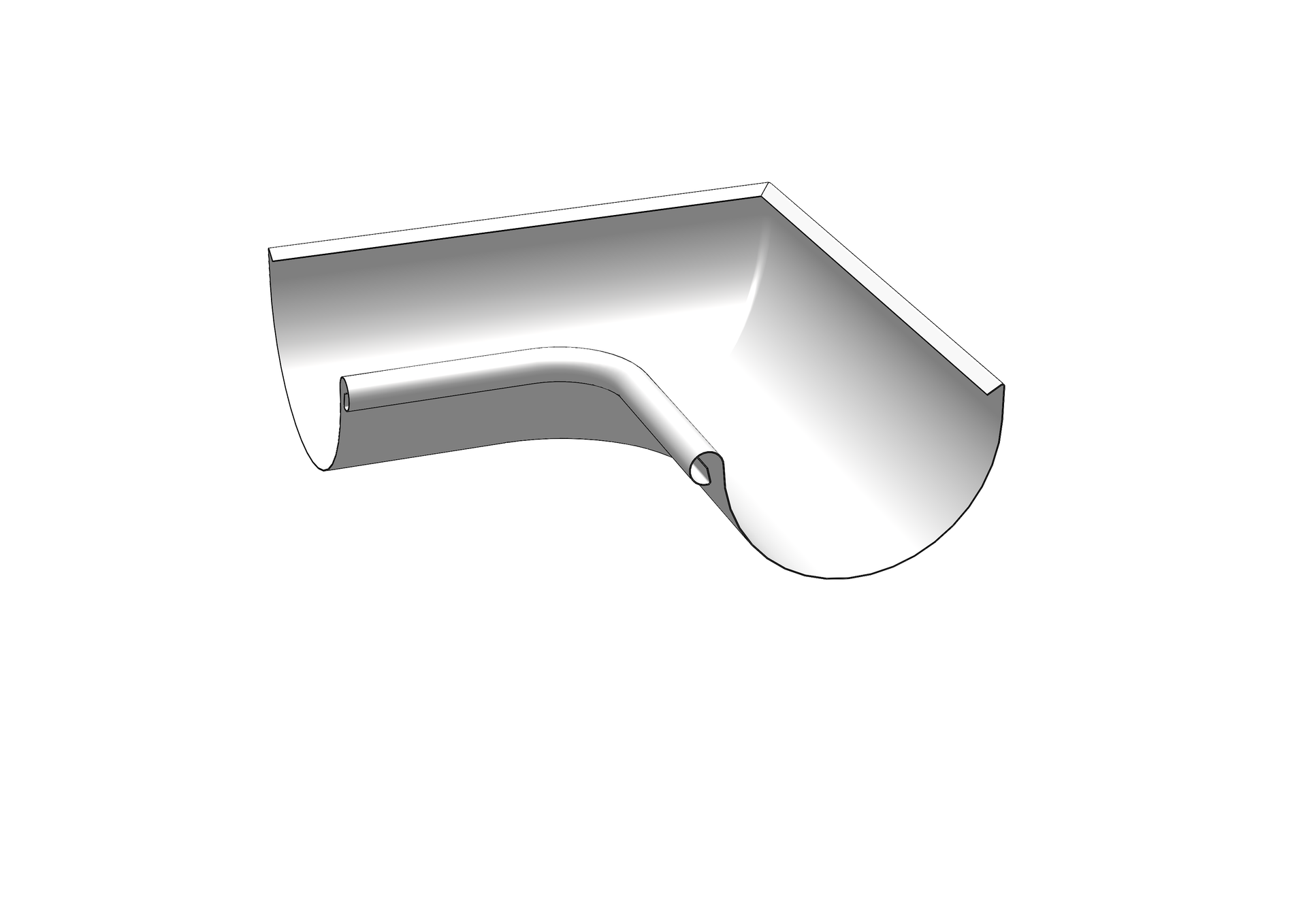

Pressed Corners
APPLICATIONS
- External corners to suit European bead Half round gutter
- Internal corners to suit European bead Half round gutter
ADVANTAGES
- Clean pressed corner
- Quick easy install
- No mitre cuts
- No Rivets
Specifications
SUITABLE FOR
- European bead half round gutter
INSTALLATION
Solder join pressed corner to half round gutter
MATERIAL
- Aluminium Mill Finish (Alu)
- 125mm | 150mm | 200mm
- Copper (Cu)
- 100mm | 125mm | 150mm | 200mm
- Galvanised (Ga)
- 100mm | 125mm | 150mm | 200mm
- VM Zinc Quartz (VMQ)
- 150mm
- Zinc Mill Finish (ZMF)
- 150mm
* slight differneces may appear with galvanised pressed corners to gutter lengths, i.e. small/large spangles, over time the appearences will weather in.
FINISHES
- Colorbond, Colorbond ULTRA, Colorbond MATT - Powder coated Aluminium Mill Finish (above sizes) to colour match
| Size 1/2rg | Pressed Corner | Length | Material |
|---|---|---|---|
| 100mm | External & Internal | 300 | Cu, Ga |
| 125mm | External & Internal | 300 | Alu, Cu, Ga |
| 150mm | External & Internal | 300 | Alu, Cu, Ga, VMQ, ZMF |
| 200mm | External & Internal | 340 | Alu, Cu, Ga |

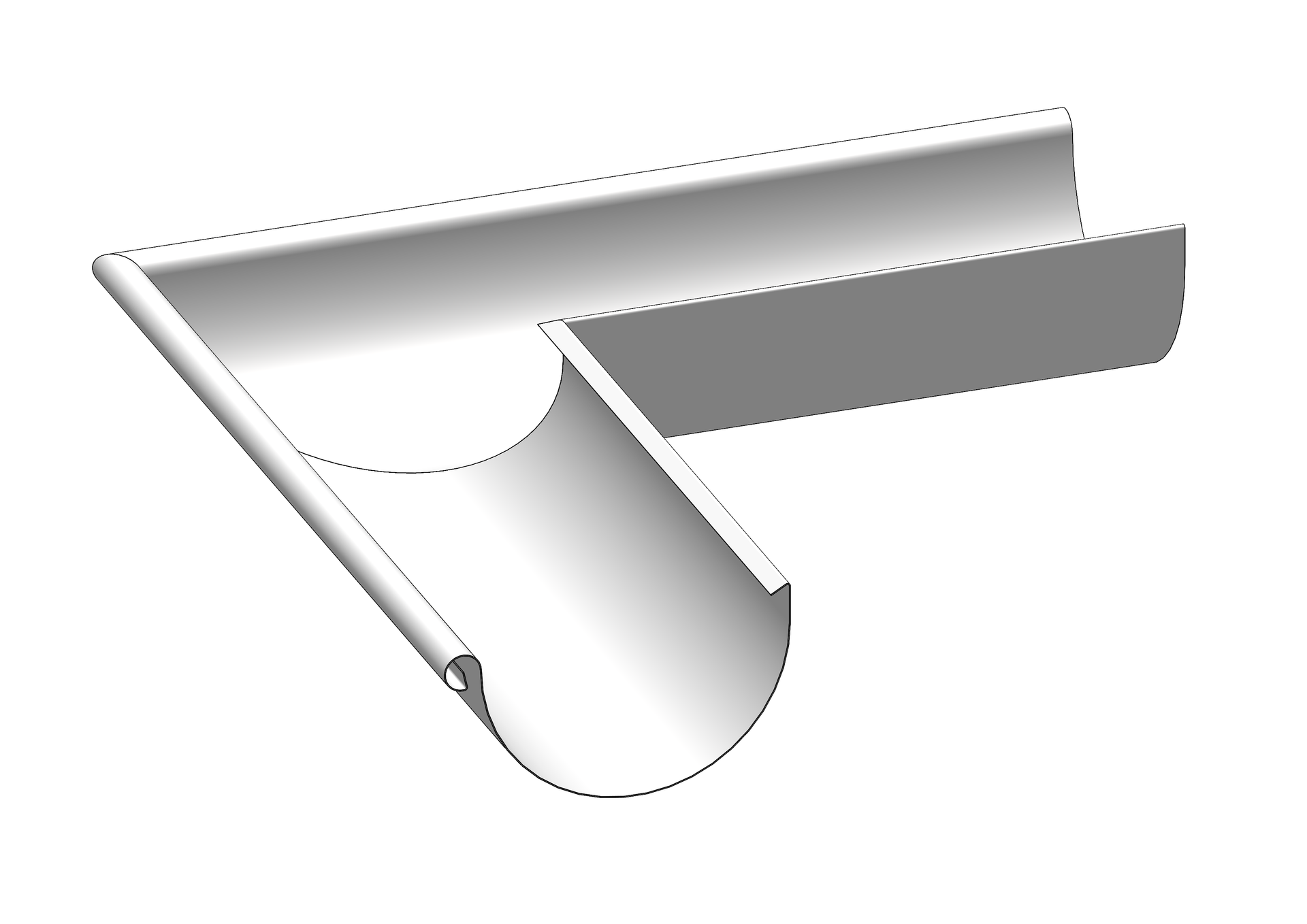

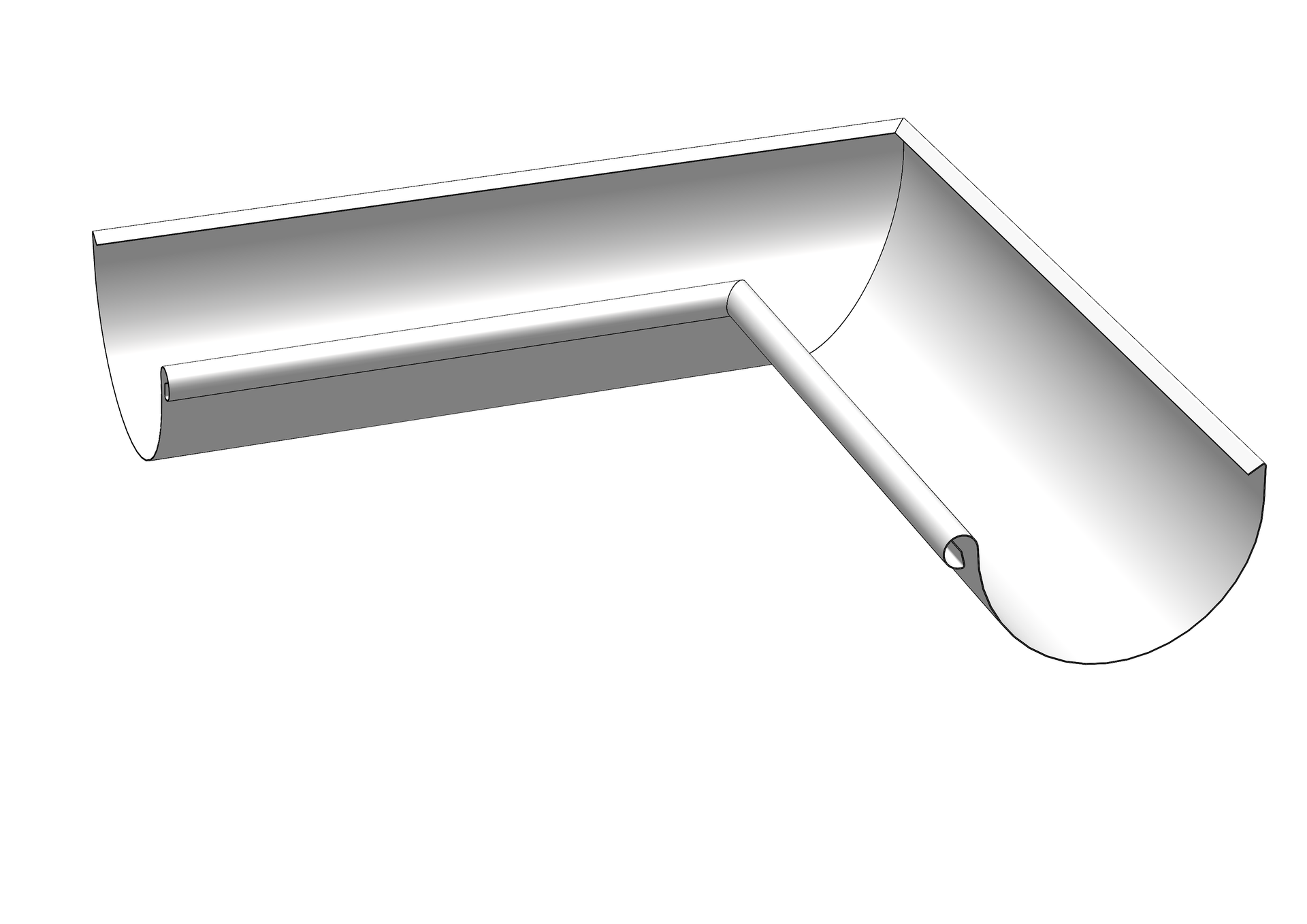

Manufactured Mitred Corner to suit European bead
APPLICATIONS
- External corners to suit European bead Half round gutter
- Internal corners to suit European bead Half round gutter
ADVANTAGES
- Quality tradework finish
- Quick easy install
- Solder joined Copper, Galvanised, Stainless Steel and Zinc material finishes
Specifications
SUITABLE FOR
- European bead half round gutter
*To confirm between European / Standard Bead
INSTALLATION
Solder join Copper, Galvanised and Stainless Steel manufactured mitred corner to half round gutter
Rivet and silicon Zincalume manufactured mitred corner to half round gutter
MATERIAL
- Copper (Cu)
- 100mm | 125mm | 150mm | 200mm
- Galvanised (Ga)
- 100mm | 125mm | 150mm | 200mm
- 250mm | 300mm | 350mm | 400mm
- Stainless Steel (SS304 and SS316)
- 100mm | 125mm | 150mm | 200mm
- 250mm | 300mm | 350mm | 400mm
- Zincalume (Za)
- 100mm | 125mm | 150mm | 200mm
- 250mm | 300mm | 350mm | 400mm
- Zinc Mill Finish (ZMF)
- 150mm | 200mm
| Size 1/2rg | Corner | Length | Material |
|---|---|---|---|
| 100mm | External & Internal | Alu, Cu, Ga, SS, Za | |
| 125mm | External & Internal | Alu, Cu, Ga, SS, Za | |
| 150mm | External & Internal | Alu, Cu, Ga, SS, Za, ZMF | |
| 200mm | External & Internal | Alu, Cu, Ga, SS, Za, ZMF | |
| 250mm | External & Internal | Alu, Ga, SS, Za | |
| 300mm | External & Internal | Alu, Ga, SS, Za | |
| 350mm | External & Internal | Alu, Ga, SS, Za | |
| 400mm | External & Internal | Alu, Ga, SS, Za |

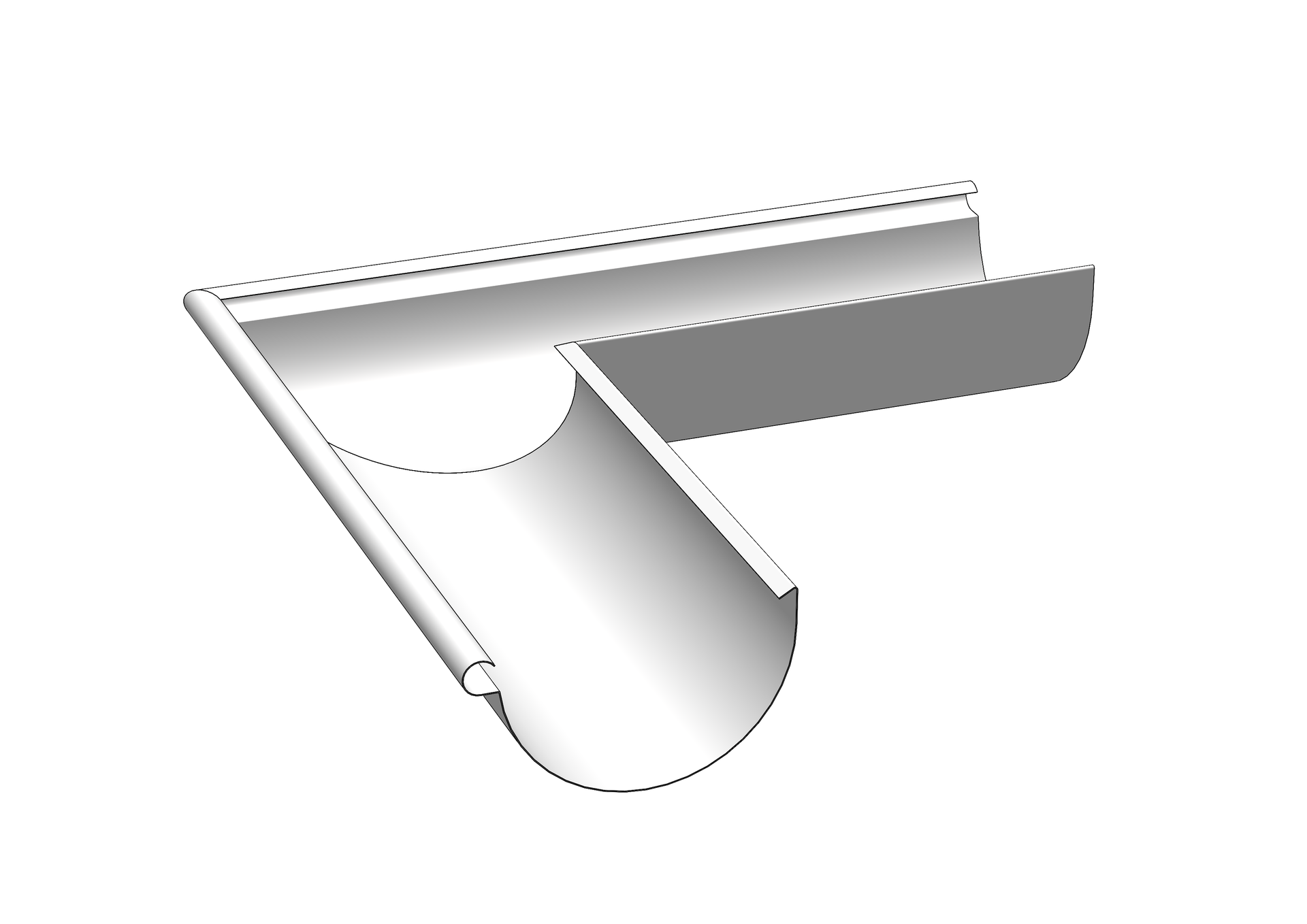

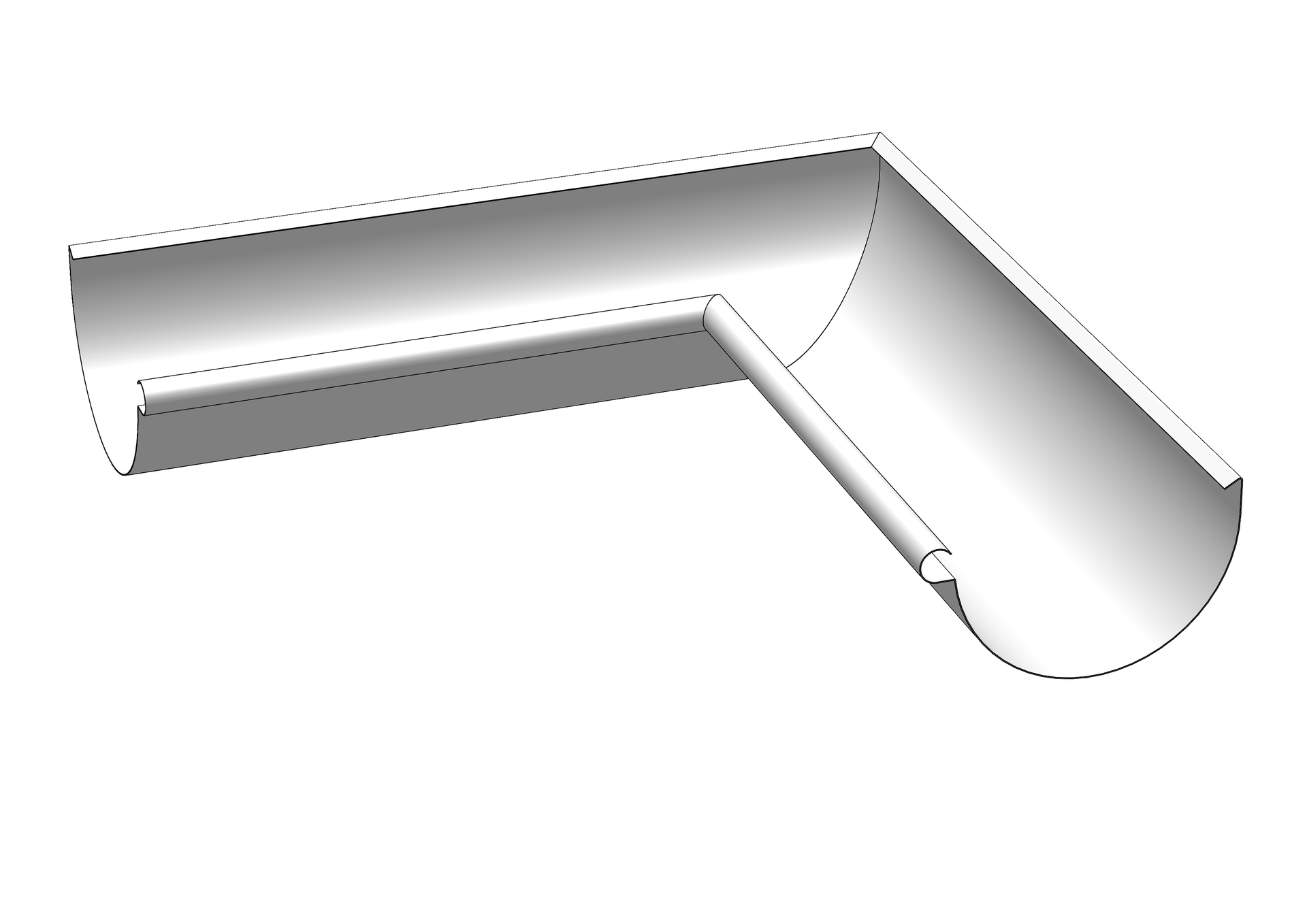

Manufactured Mitred Corner to suit Standard bead
APPLICATIONS
- External corners to suit Standard bead Half round gutter
- Internal corners to suit Standard bead Half round gutter
ADVANTAGES
- Quality tradework finish
- Quick easy install
- Solder joined Copper, Galvanised, Stainless Steel and Zinc material finishes
Specifications
SUITABLE FOR
- Standard bead half round gutter
*To confirm between European / Standard Bead
INSTALLATION
Rivet and silicon manufactured mitred corner to suit standard bead half round gutter
MATERIAL
- Colorbond XRW/ULTRA/MATT (CB)
- 100mm | 125mm | 150mm | 200mm
- 250mm | 300mm | 350mm | 400mm
- PREFA Aluminium
- 150mm | 200mm
- Zinc Mill Finish (ZMF)
- 150mm | 200mm
| Size 1/2rg | Corner | Length | Material |
|---|---|---|---|
| 100mm | External & Internal | CB, PREFA | |
| 125mm | External & Internal | CB, PREFA | |
| 150mm | External & Internal | CB, PREFA, ZMF | |
| 200mm | External & Internal | CB, PREFA, ZMF | |
| 250mm | External & Internal | CB, PREFA | |
| 300mm | External & Internal | CB, PREFA | |
| 350mm | External & Internal | CB, PREFA | |
| 400mm | External & Internal | CB, PREFA |
