Click-On Outlet
Outlets to suit Half Round Gutters

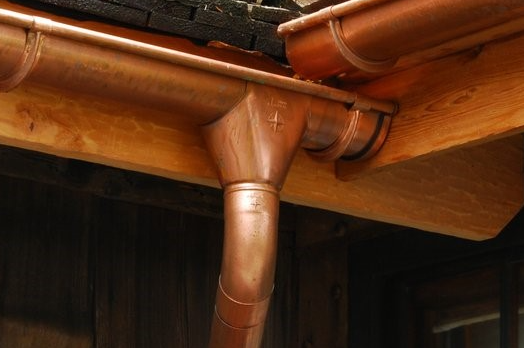

Half Round Gutter Click-On Outlet
APPLICATIONS
- Rainhead outlet for residential Half round gutter
- Rainhead outlet for commercial and industrial Half round Gutter
- tradework available for custom sizes
ADVANTAGES
- Click-On Outlets provide up to 33% more water flow than standard nozzles
- Reduced water standing and self-cleaning
- LESS install time than nozzle
- No scalloping of the downpipe is required
- No Rivets
| Size 1/2rg | Click-On Outlet (mm) | Material |
|---|---|---|
| 100mm | 80 | Cu, Ga, Za |
| 125mm | 80 | Alu, Cu, Ga, Za |
| 150mm | 80 | Alu, Cu, Ga, VMQ |
| 150mm | 90 | Alu |
| 150mm | 100 | Alu, Cu, Ga, VMQ, ZMF |
| 200mm | 100 | Tradework |
| 250mm | 150 | Alu |
| 300mm | 150/225/250 | Tradework |
| 350mm | 150/225/250 | Tradework |
| 400mm | 150/225/250 | Tradework |
| Dimensions in mm (1/2rg / Outlet size) | Drainage capacity for 2-sided inlet in L/s | Drainage capacity for 1-sided inlet in L/s |
|---|---|---|
| 100/80 | 3.00 | 1.50 |
| 125/80 | 4.60 | 2.30 |
| 150/80 | 6.20 | 3.10 |
| 150/90 | 6.20 | 3.10 |
| 150/100 | 6.40 | 3.20 |
| 200/100 | 12.20 | 6.10 |
| 250/150 | 19.20 | 9.60 |
Suitable for
- European Bead Half Gutter
- Standard Bead Half Gutter
Specifications
Gutter Fall 1:500
Gutter Bracket Spacings - 1000mm centres
Fixing
European Bead - Clip front flange into bead close rear flaps ever back of gutter.
Standard Bead - Trimmed flange, rivet front face, and close rear flaps over back of gutter.
Location - Slope of 1 to 5 mm/m in direction of the outlet.
Material
- Aluminium Mill Finish (Alu)
- 125mm | 150mm | 200mm | 250mm
- Copper (CU)
- 100mm | 125mm | 150mm | 200mm
- Galvanised (GA)
- 100mm | 125mm | 150mm | 200mm
- Zincalume (ZA)
- 100mm | 125mm | 150mm | 200mm
- VM Zinc Quartz (VMQ)
- 150mm
- Zinc Mill Finish (ZMF)
- 150mm
Finishes
- Colorbond, ULTRA Colorbond, MATT Colorbond & Powder Coated Aluminium Mill Finish to colour match.
- PREFA Aluminium - Powder coated Aluminium Mill Finish to colour match.
