Brackets to suit Half Round Gutters

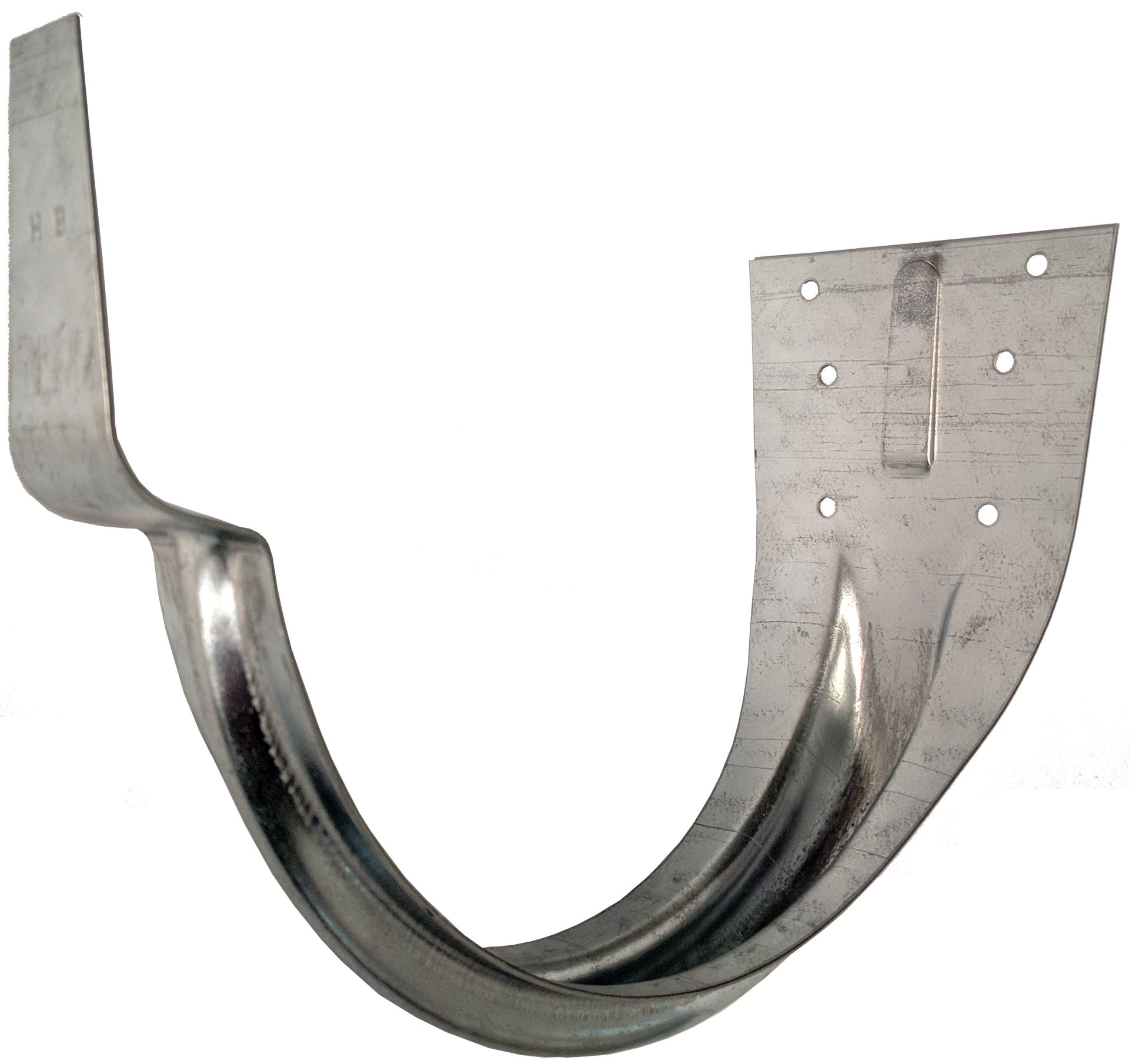

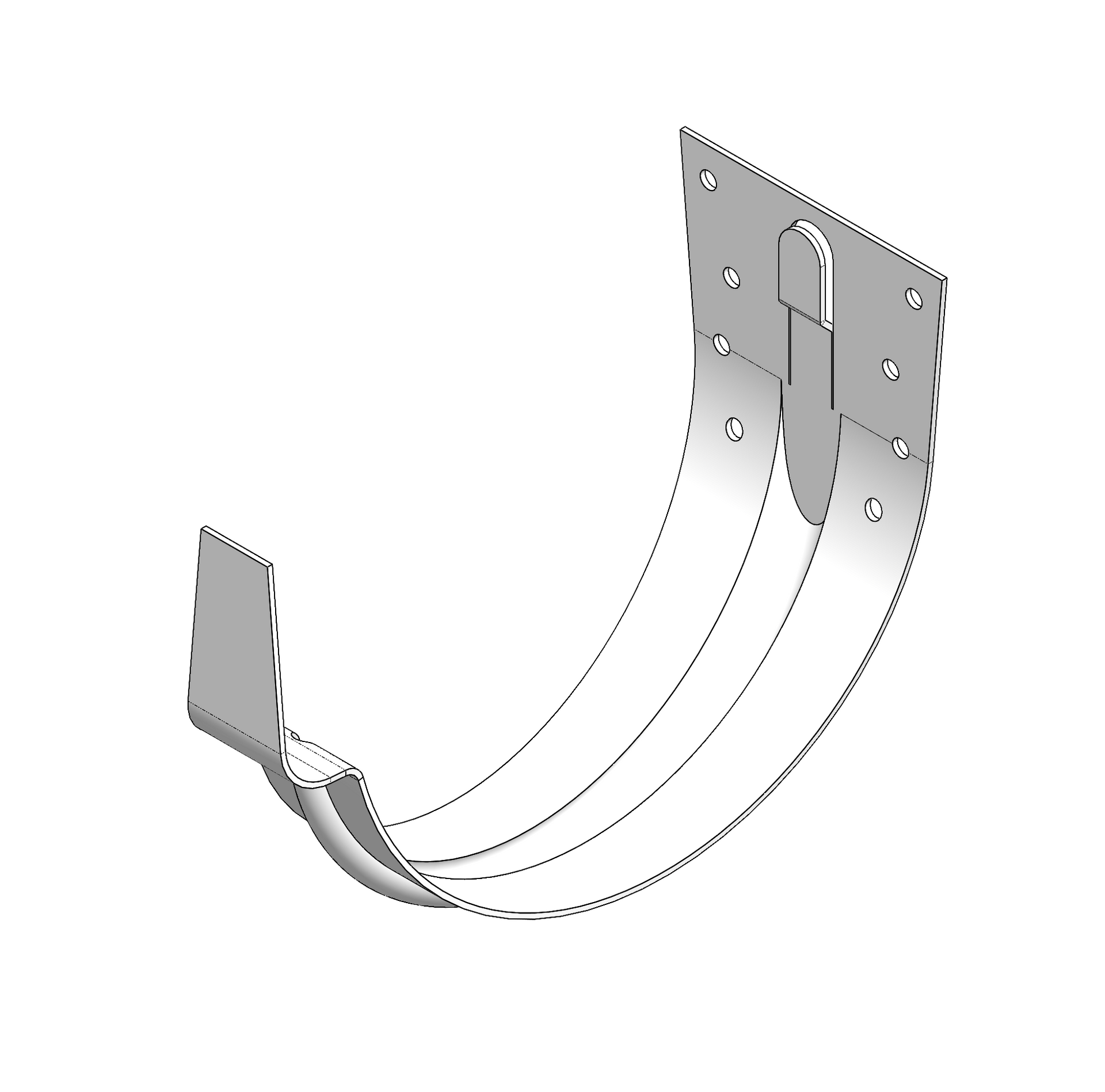

A1 Gutter bracket (Fascia)

APPLICATIONS

  • Residential
  • Traditional
  • Heritage
  • Contemporary
  • Commercial and industrial
  • up to 200mm Half Round Gutter


ADVANTAGES

  • Rivets not required to secure gutter
  • Tag to secure gutter while also allowing for thermal expansion of gutter
  • Available in wide range of materials
  • Minimalist design suitable for modern and traditional architecture

Specifications

SUITABLE FOR

  • European bead half round gutter
  • Standard bead half round gutter



INSTALLATION

Gutter fall 1:500

Gutter bracket spacings: 1000mm centres



FIXING

Steel: Metal Tek Wafer Head 10-16-16 or gutter bolts & nuts


Timber: Type 17 Wafer head 10-35mm


Locations: Minimum of 4 x lower holes as fixing points (see diagram)


MATERIAL

  • Aluminium Mill Finish
  • 150mm


  • Copper
  • 80mm  |  100mm  |  125mm  |  150mm  |  200mm


  • Galvanised
  • 80mm  |  100mm  |  125mm  |  150mm  |  200mm


  • Stainless Steel 304
  • 150mm

  • Zincalume
  • 150mm



FINISHES

  • Colorbond - Powder coated Galvanized (all sizes) or Aluminium Mill Finish (150mm ONLY) to colour match


  • Colorbond ULTRA - Powder coated Aluminium Mill Finish (150mm ONLY) to colour match


  • PREFA Aluminium - Powder coated Aluminium Mill Finish (150mm & 200mm ONLY) to colour match


  • VM Zinc Quartz - Powder coated Aluminium or Powder coated Galvanised or Powder coated Stainless Steel to colour match
  • 150mm

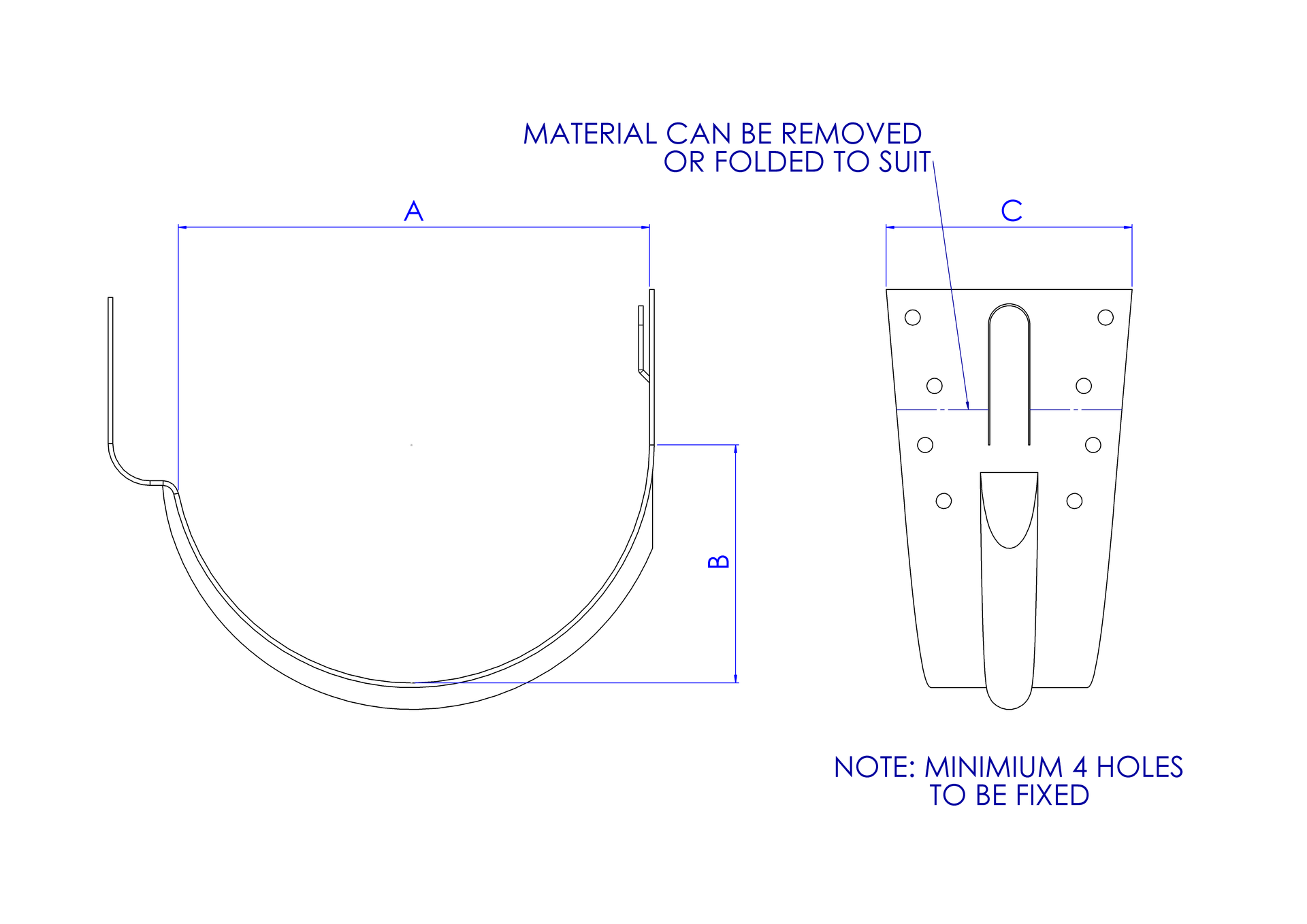

Size 1/2rg A(mm) B(mm) C(mm) Weight
80mm 80 70 99g
100mm 105 80 106g
125mm 127 65 80 125g
150mm 153 75 80 145g
200mm 192 100 100 267g

MATERIALS & FINISHES

Unpainted Steel

Colorbond

Colorbond ULTRA

Colorbond Metallic

Colorbond Matt

Non-ferrous Metals

Half Round Gutters for Your Next Project

KFC Roofing is a Half Round Gutter specialist and can provide you with more information and product options if you are looking for an Half Round Gutter solution for your next project.
