LYSAGHT Custom Orb®

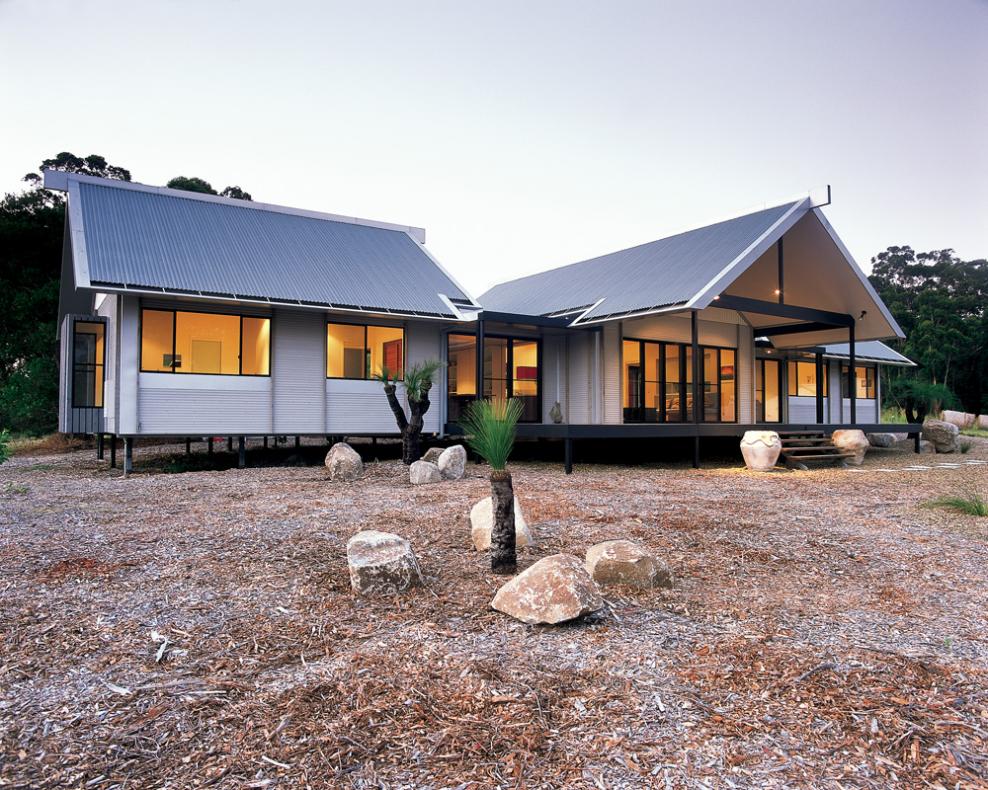

Custom Orb® is a versatile roofing and walling product that can be used on both flat and curved surfaces. It is made from corrugated material that is tough and lightweight, making it an ideal choice for a range of applications. Custom Orb® is also easy to install, making it a popular choice for both DIYers and professional roofers. Whether you're looking to add a touch of style to your home or need a durable roofing solution for a commercial project, Custom Orb® is worth considering.
- Perfect for both roofing and wall applications
- A range of Colorbond colours is available

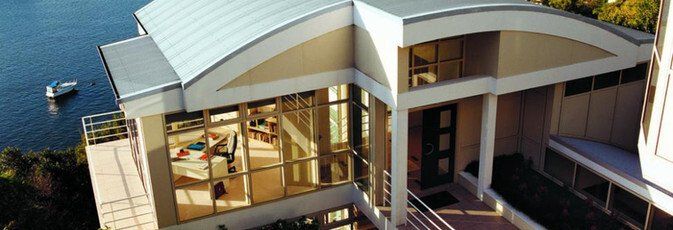

- Versatile material: can be laid flat or sprung curved

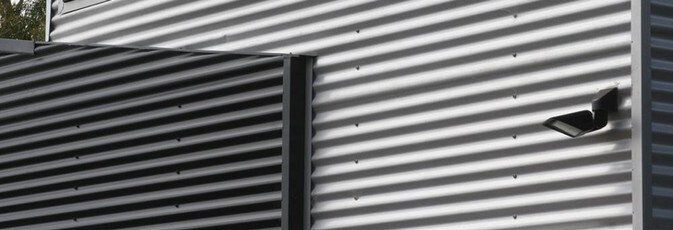

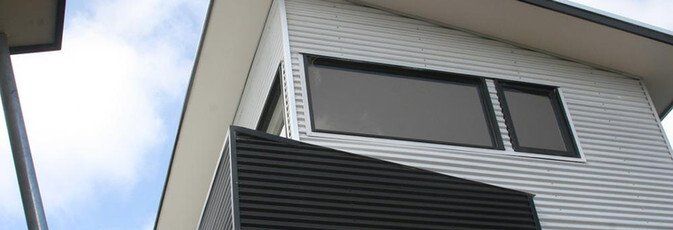

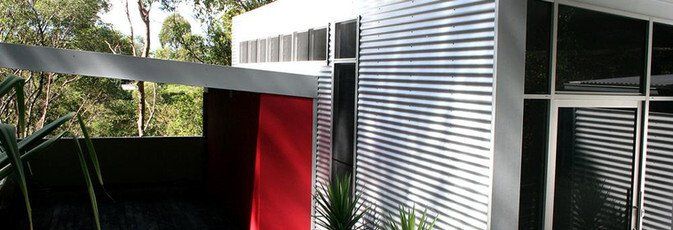

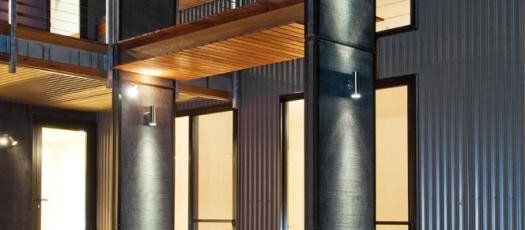

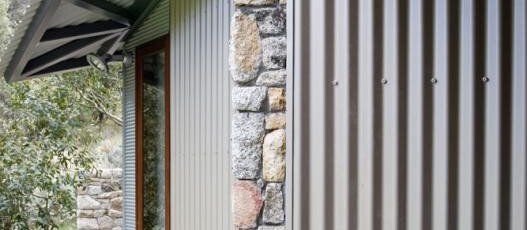

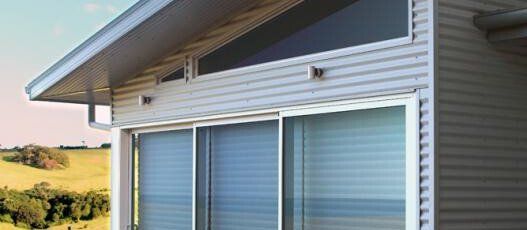

- Corrugated roofing & walling suitable for curving
- A lightweight yet strong roofing and walling material
Specifications
BMT: 0.42 – 0.48
Cover Width: 762
Weight: 4.35 – 4.93 Kg
Minimum Pitch: 5 Degrees (1 in 12)
Roof Span
Int Span: 1200 - 1700mm
End Span: 900 - 1300mm
Wall Span
Int Span: 2700 mm
End Span: 2500 - 2700 mm
Rib Height: 16mm
Accessories
- Infill Strips (930mm Long)
- Prestites – Preformed Bitumen Sealing Strip
- Polycarbonate Sheeting to Suit Corrugated
- Fibreglass Sheeting to Suit Corrugated
- Barge/Edge Roll
- Spearpoints
Colours You can Choose from
- XRW Colorbond Range
- ULTRA Colorbond Range
- Zincalume
- Galvanised
- Copper
MATERIALS & FINISHES
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
Non-ferrous Metals
Get the Innovative Custom Orb® for Your Roof or Wall Cladding
Contact our friendly team today to enquire about our Custom Orb® options.
