Brackets to suit Half Round Gutters
A2 Gutter bracket (Rafter)
APPLICATIONS
- Residential
- Traditional
- Heritage
- Contemporary
- Commercial and industrial
- up to 200mm Half Round Gutter
ADVANTAGES
- Rivets not required to secure gutter
- Tag to secure gutter while also allowing for thermal expansion of gutter
- Available in wide range of materials
- Low profile design suitable for modern and traditional architecture
Specifications
SUITABLE FOR
- European bead half round gutter
- Standard bead half round gutter

INSTALLATION
Gutter fall 1:500
Gutter bracket spacings: 1000mm centres
Fixing to plywood: rout approximate 5 - 7mm mm recess out of bracket
Use Stubai bracket bender to bend A2 bracket to suit roof pitch
FIXING
Steel: Metal Tek Counter sunk Head 35mm
Timber: Type 17 Counter sunk head 40mm
Locations: 3 fixing points per bracket (see diagram)
MATERIAL
- Aluminium Mill Finish - 7mm
- 150mm | 200nmm
- Copper - 5mm
- 80mm | 100mm | 125mm | 150mm | 200mm
- Galvanised - 5mm
- 100mm | 125mm | 150mm | 200mm
- Stainless Steel 304 - 5mm
- 150mm | 200mm
- VM Zinc Quartz - 5mm
- 150mm
FINISHES
- Colorbond | Colorbond MATT - Powder coated Galvanized (all sizes) to colour match
- Colorbond ULTRA - Powder coated Aluminium Mill Finish (150mm & 200mm ONLY) to colour match
- PREFA Aluminium - Powder coated Aluminium Mill Finish (150mm & 200mm ONLY) to colour match

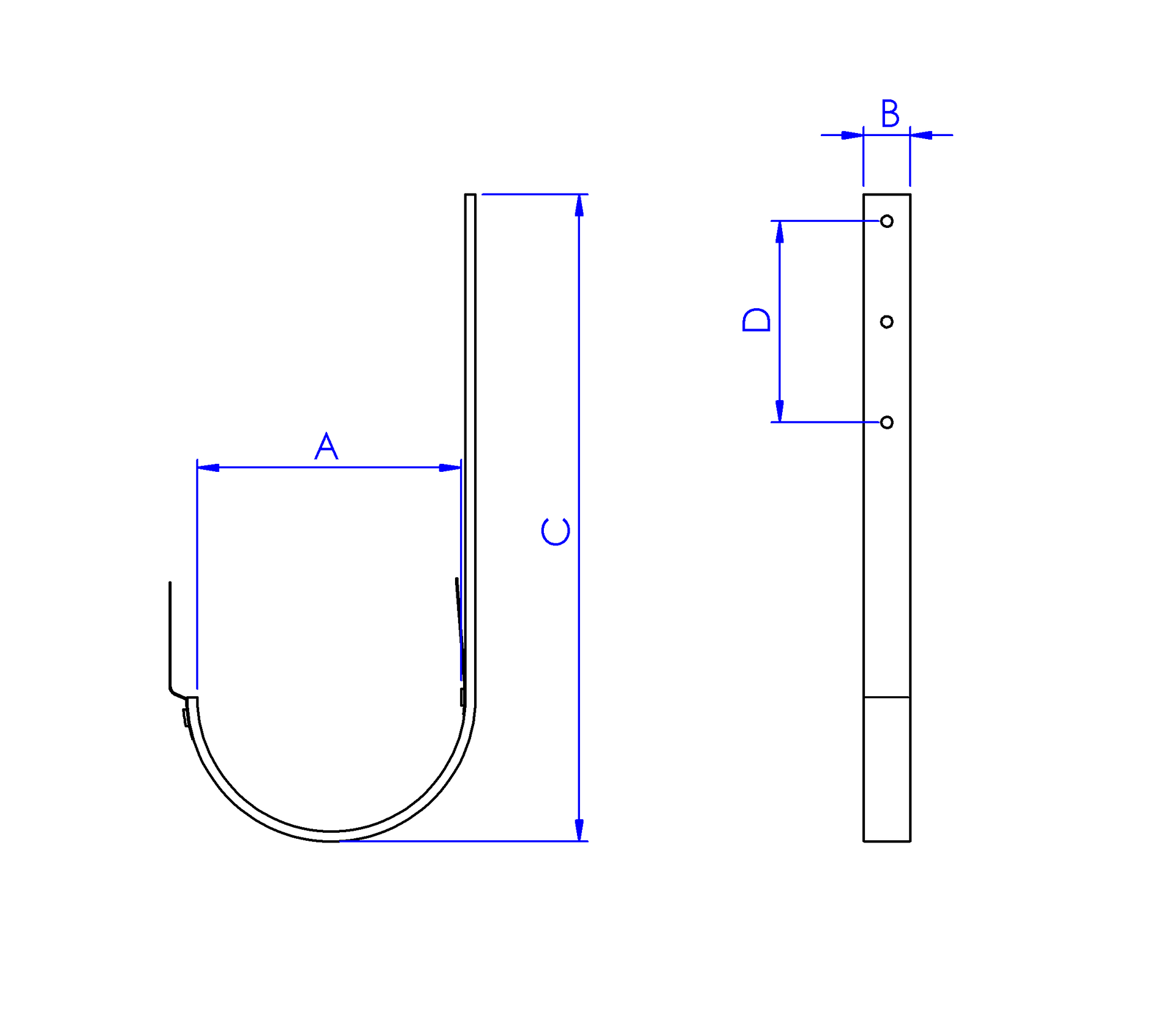

| Size 1/2rg | A(mm) | B(mm) | C(mm) | D(mm) |
|---|---|---|---|---|
| 100mm | 105 | 24 | 270 | 135 |
| 125mm | 127 | 29 | 280 | 145 |
| 150mm | 153 | 29 | 375 | 145 |
| 200mm | 192 | 29 | 430 | 145 |
MATERIALS & FINISHES
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
Non-ferrous Metals
