Custom Blue Orb®: Quality Corrugated & Lightweight Roofing & Wall Material
LYSAGHT Custom Blue Orb®
Custom Blue Orb® is a versatile, corrugated roofing and walling material that is suitable for curving. It is a lightweight yet strong roofing and walling material that can be laid flat or sprung curved. Custom Blue Orb® is a versatile roofing product that is suitable for a wide range of roofing applications. It is available in a variety of colours and finishes and can be customized to meet the specific needs of your project. Custom Blue Orb® is an excellent choice for roofing projects that require a lightweight, strong, and versatile roofing material.
- Corrugated roofing & walling suitable for curving
- A lightweight yet strong roofing & walling materials

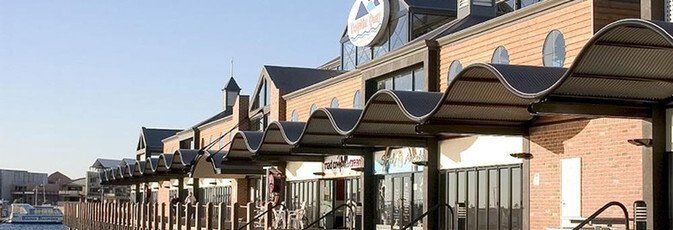

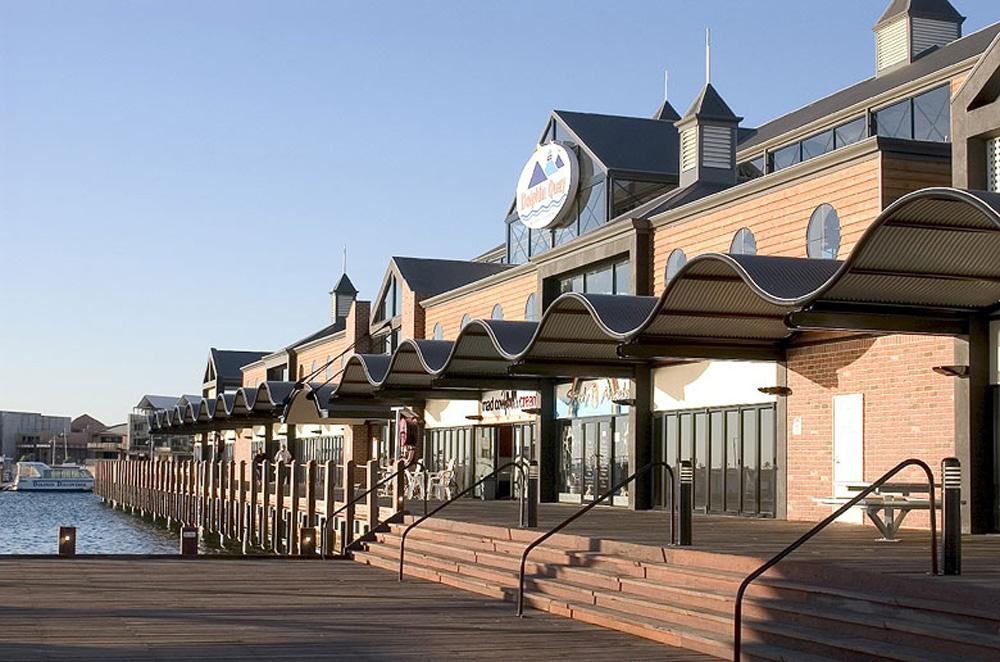

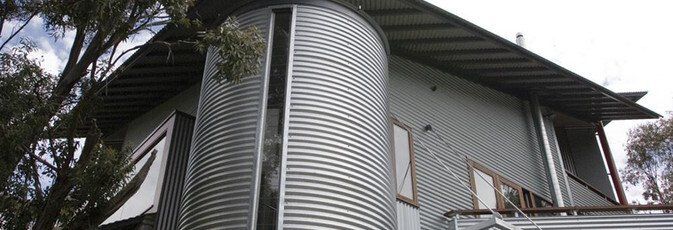

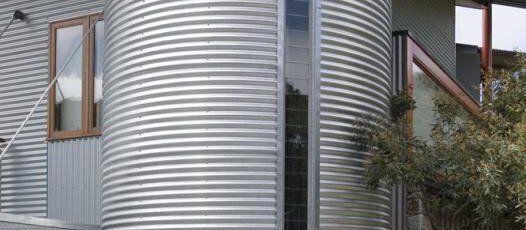

- Versatile: Can be laid flat or sprung curved
Specifications
BMT: 0.60mm
Weight: 6.09 kg
Minimum Pitch: 5 Degrees
Roof Span
Int Span: 1800mm
End San: 1600mm
Wall Span
Int Span: 3300mm
End Span: 3000mm

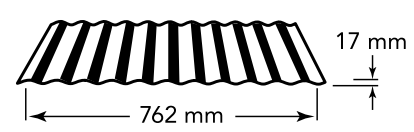

Rib Height: 17mm
Accessories
- Infill Strips (930mm Long)
- Prestites – Preformed Bitumen Sealing Strip
- Polycarbonate Sheeting to Suit Corrugated
- Fibreglass Sheeting to Suit Corrugated
- Barge/Edge Roll
- Spearpoints
- Formtex – Curved Flashings
Colour Range
- XRW Colorbond Range
- ULTRA Colorbond Range
- Zincalume
- Galvanised
Our Custom Blue Orb® Material Range
Unpainted Steel Options
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
