Nailstrip 25mm & 38mm
Architectural Cladding

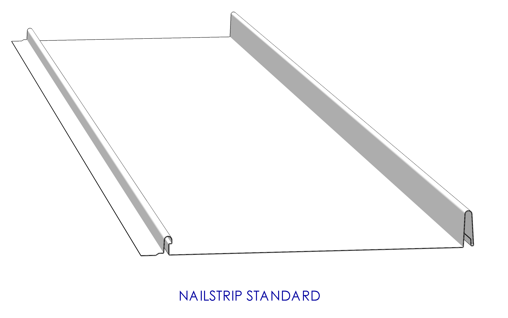

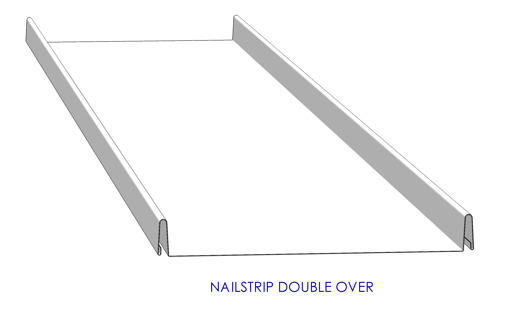

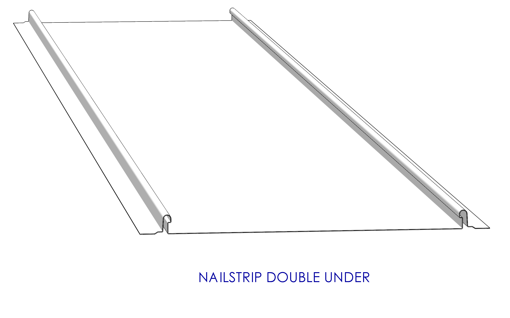

Nailstrip 25 & 38
Nailstrip is a type of architectural cladding system that features a raised profile that is secured to the substrate with nails or screws.
This type of panel offers several advantages over traditional roofing systems, including:
- Durability: Nailstrip panels are made from high-quality materials, such as aluminum, steel, or copper, and are designed to last for many years
- Minimal maintenance
- Easy installation: Nailstrip panels are designed for quick and easy installation, reducing labor costs and installation time
- No exposed fasteners: The raised profile design eliminates the need for exposed fasteners or clips, providing a clean and sleek appearance
- Design flexibility: Nailstrip panels can be custom fabricated to fit any building design or specification, and are available in a range of colors and finishes to match any architectural style
Specifications
Rib Height - 25mm & 38mm
Applications

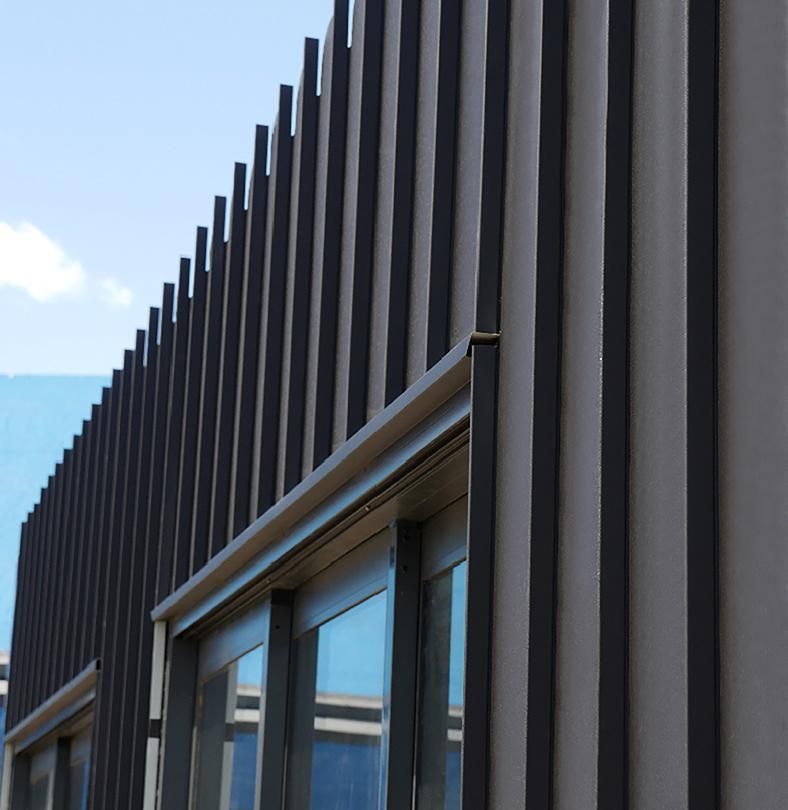

- Wall Cladding
All Materials
BMT: Varies per material selected. See specifications below.
Cover:
Varies per material selected. See standard sizes below.
Custom COVER sizes available upon request.
Accessories:
- Self-Adhesive Membrane
- Enkamat (Separation & Condensation Layer)
Colorbond - Standard / Metallic / Matt / Ultra
BMT - 0.55mm
Cover: 265mm
465mm
PREFA Aluminium
BMT - 0.70mm
Cover - 365mm
Copper
BMT - 0.55mm & 0.70mm
Cover: 265mm
365mm
465mm
Zinc
BMT - 0.70mm
Cover: 365mm
Galvanised / Zincalume
BMT - 0.55mm
Cover: 265mm
465mm
Support
- 17mm Plywood
- Water-proof Membrane
MATERIALS & FINISHES
PREFA ALUMINIUM
Note: Colours in stock unless marked with *, colours marked with * are available on special order.
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
Non-ferrous Metals
VM Zinc
